2.13inch E-Ink Display HAT for 5/4B/3B+/3B/2B/Zero/Zero W/WH and Jetson Nano, 250×122 Pixel White Black Red Three-Color SPI Interface No Backlight
Product details
| Management number | 238124302 | Release Date | 2026/07/11 | List Price | US$15.68 | Model Number | 238124302 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

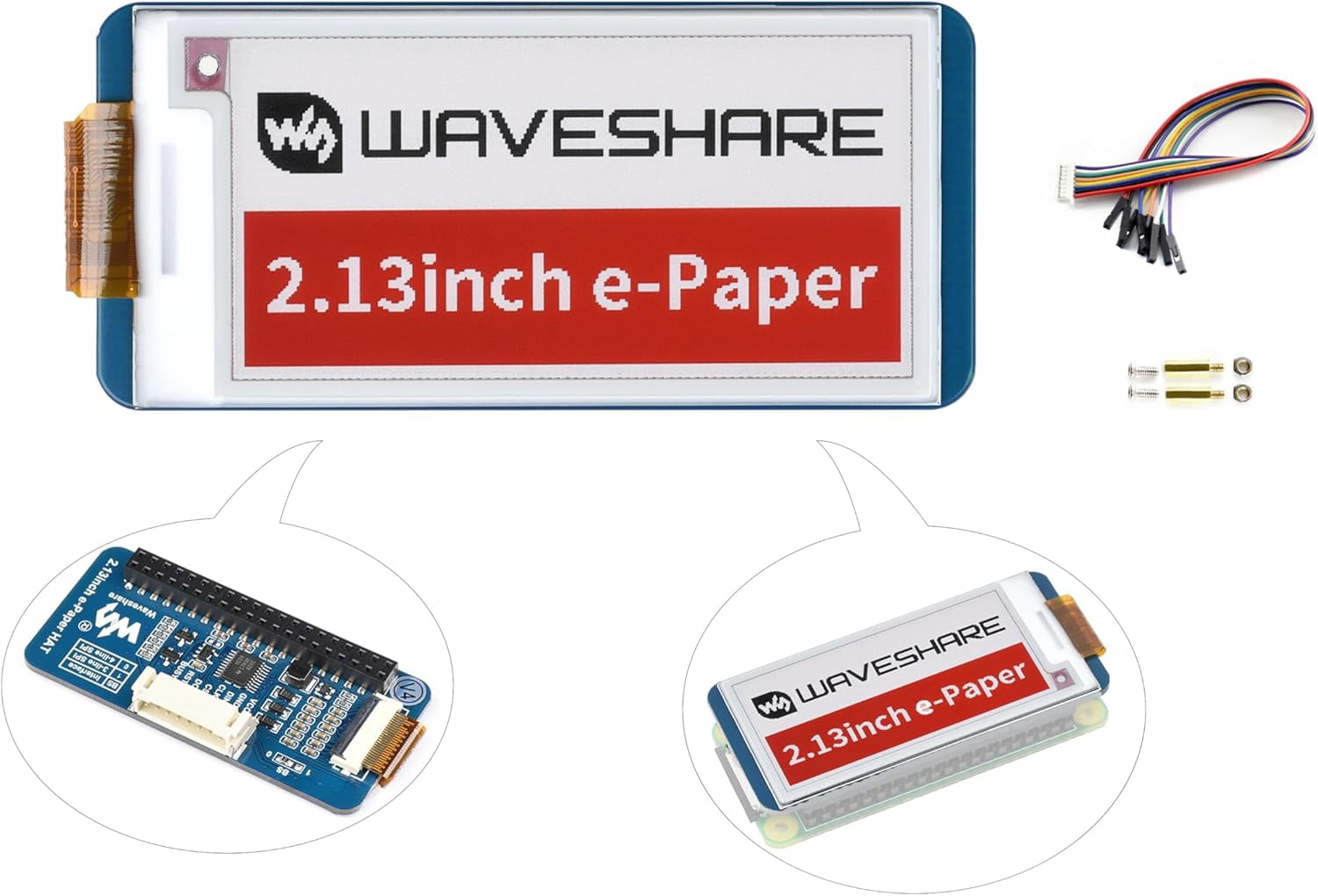

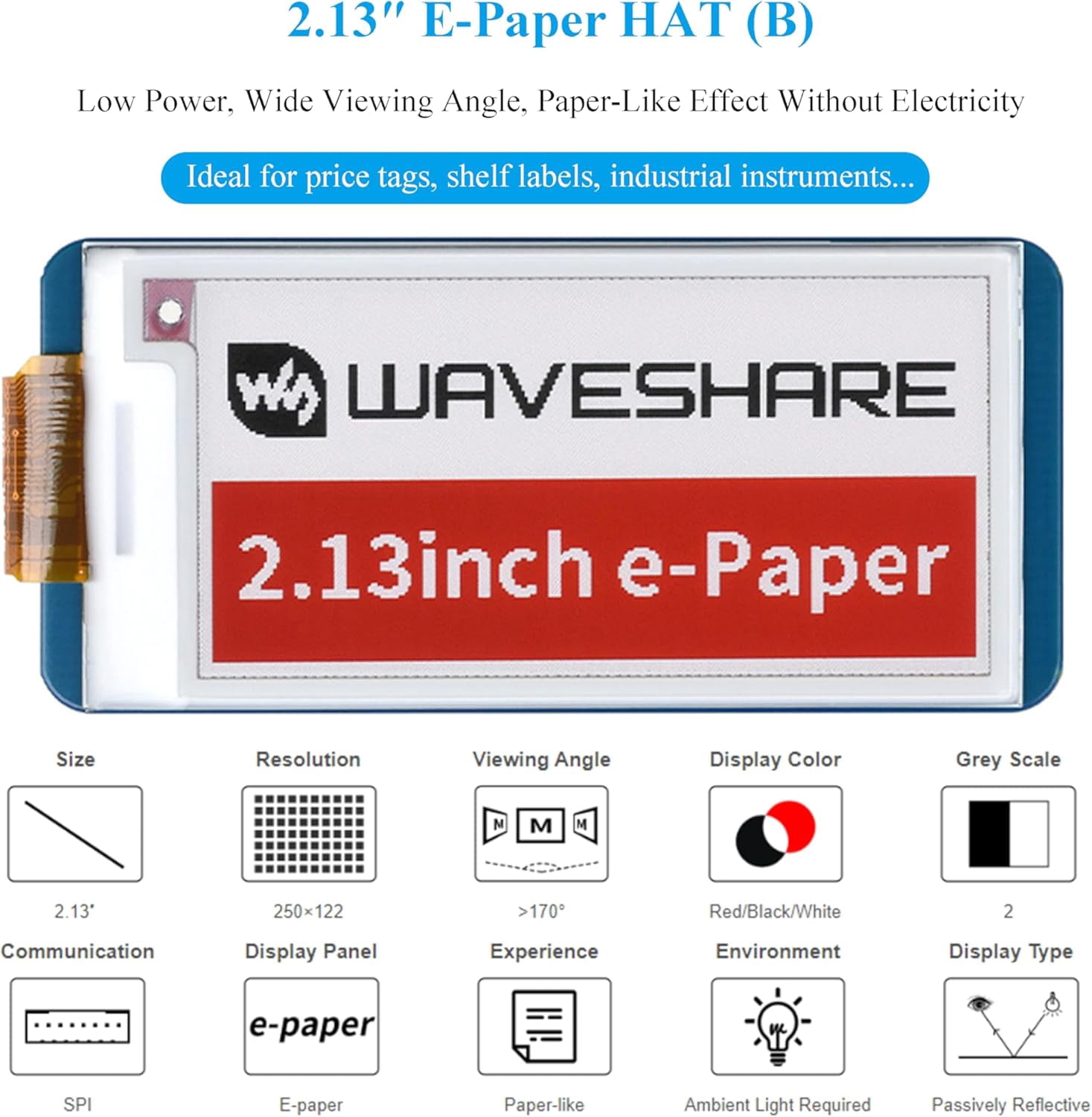

This is 2.13inch E-Paper HAT (B) E-Ink display HAT, 250x122 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

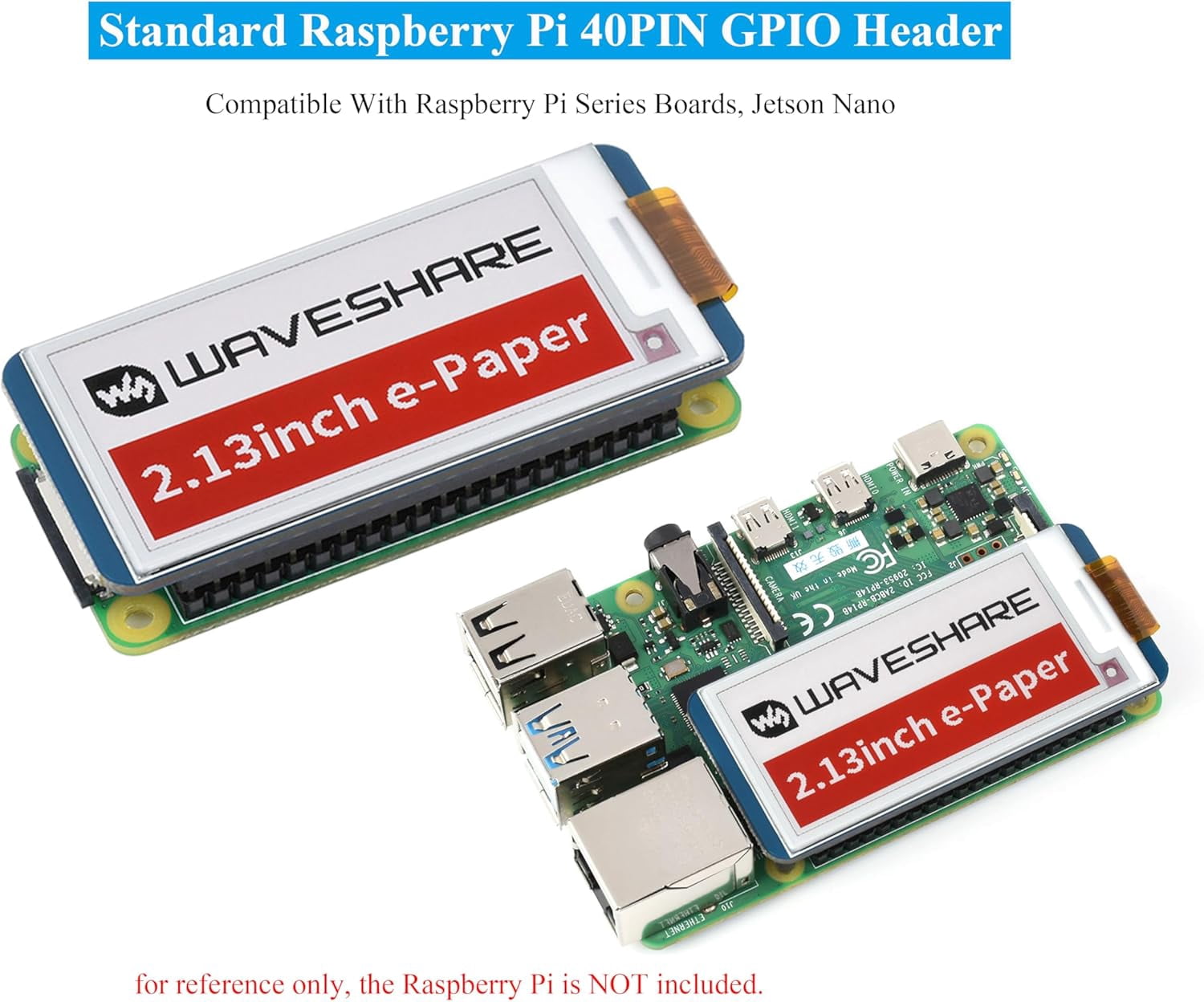

- Standard RPi 40PIN GPIO extension header,Compatble with series boards, Jetson Nano. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

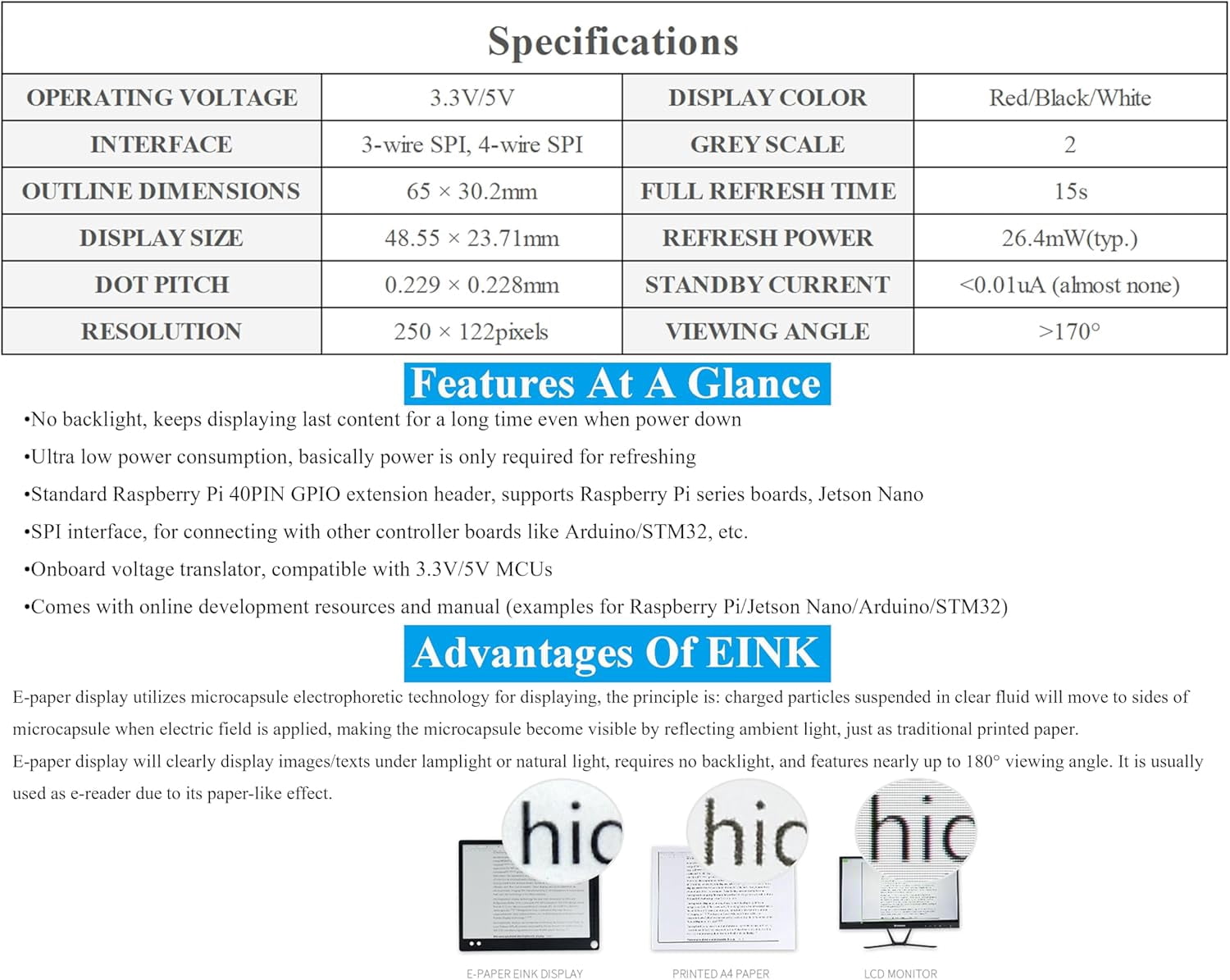

- Operating voltage: 3.3V/5V. Interface: 3-wire SPI, 4-wire SPI. Outline dimension: 65mm × 30.2mm. Display size: 23.71mm × 48.55mm. Dot pitch: 0.229 × 0.228.
| Brand | NOBRAND |
|---|---|
| Has written warranty | No |
| Has nrtl listing certification | N |
